Engineering Machinery & Other Transportation

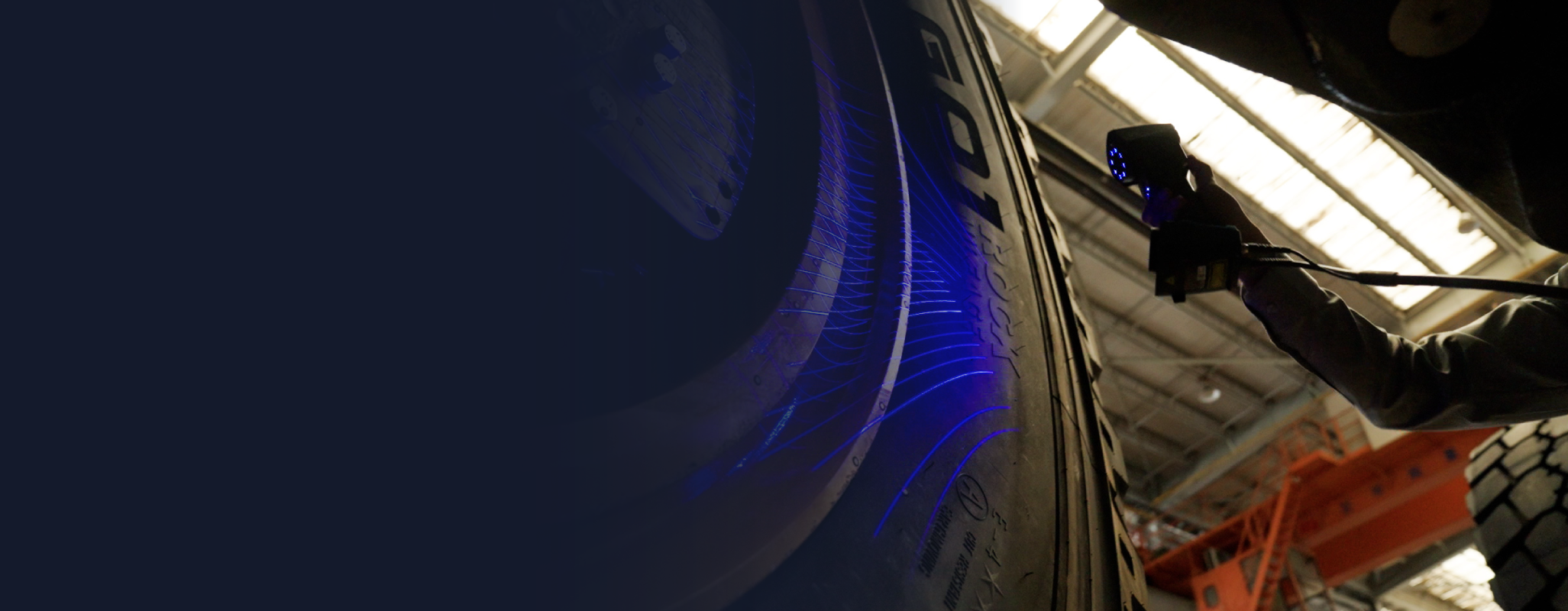

Engineering Machinery & Other Transportation

Tianjin Machinery Group provides essential benefits to the Engineering Machinery & Other Transportation industry. Our precise 3D measurements improve quality control, reduce errors, and cut costs. Our scanners enable efficient reverse engineering, rapid part development, and quick identification of wear and damage, minimizing downtime. We also support digital documentation for better traceability and compliance. Overall, our scanners enhance efficiency, cost-effectiveness, and innovation in the industry.

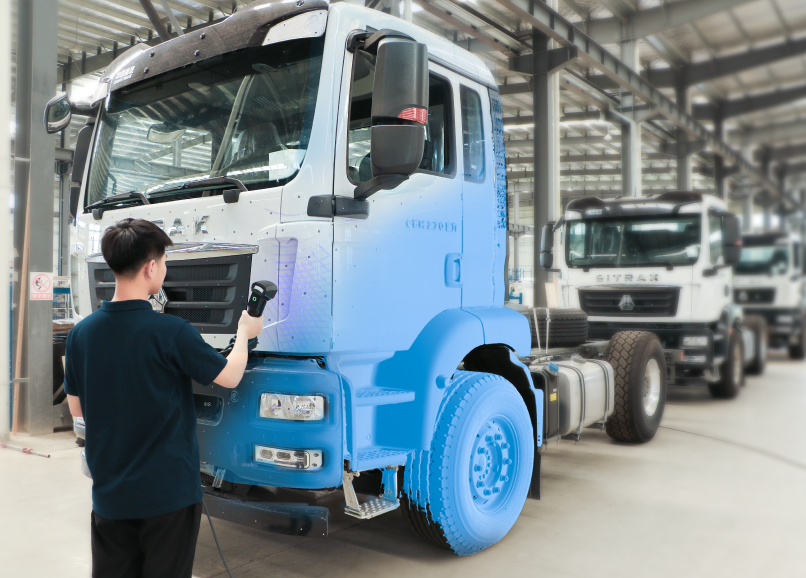

Engineering Machinery Overview

Overview

The Engineering Machinery & Other Transportation industry supports global infrastructure with machinery for construction and transport. It has potential for tech advancements and increased productivity. Challenges include high costs, strict regulations, and the need for constant innovation. Opportunities lie in automation, AI, and IoT to enhance efficiency and sustainability.

    About Our Metrology Solutions

    Tianjin Machinery Group offers higher accuracy and greater efficiency.

    Engineering Machinery Solutions

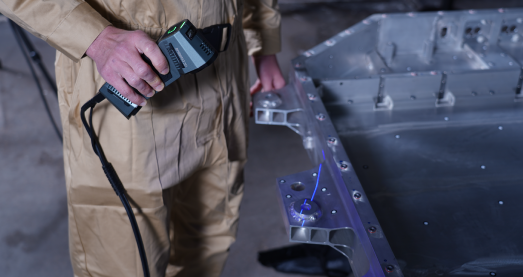

    Engineering Machinery Solutions

    Integrated equipment for loading/unloading, construction, and maintenance

    Tianjin Machinery Group scanners can enhance Engineering Machinery Solutions by providing precise 3D scanning for parts and equipment. This enables accurate measurements, quality control, and efficient reverse engineering. Benefits include improved maintenance planning, reduced downtime, and streamlined manufacturing processes through rapid prototyping and custom part development.

    Ships and Ports

    Advancing Ship and Port Operations through 3D Inspection and Maintenance

    Tianjin Machinery Group scanners contribute to the maritime and port industries by providing accurate 3D scanning capabilities for inspection and maintenance tasks. This technology ensures precise measurements, enhances quality control, and facilitates efficient repairs. Benefits include expedited diagnosis of issues, minimized downtime, and enhanced safety compliance through detailed digital documentation and analysis.

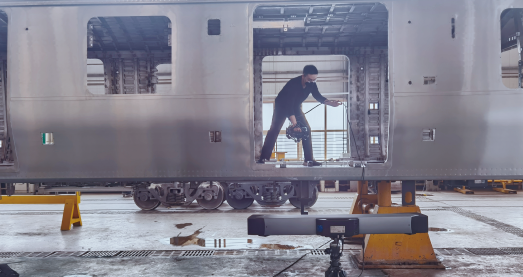

    Rail transit

    Rail transit

     High-speed trains, bullet trains, subways, light rail

    Tianjin Machinery Group scanners can significantly benefit rail transit systems like high-speed trains, bullet trains, subways, and light rail by providing precise 3D scanning capabilities. Our scanners enable accurate measurement of components, efficient maintenance planning, and quality control. Benefits include faster identification of wear and damage, reduced downtime for repairs, and improved safety through thorough inspection and analysis of critical parts.

    Transform Your Workflow with Our Scanners

    Discover the ways in which integrating our scanners into your workflow can enhance efficiency and help you achieve remarkable results.

      • Production Control

        Our 3D scanners are utilized in production control to ensure parts and assemblies meet precise specifications, enabling real-time quality assurance and reducing manufacturing errors.

      • Train Maintenance

        Our 3D scanners are used to inspect and document the condition of train components, identifying wear, damage, and alignment issues to ensure timely and accurate repairs, thus enhancing safety and performance.

      • Ship Building Quality Control

        Our 3D scanners are employed to verify the dimensional accuracy of hulls and components, detect surface defects, and ensure precise alignment, thereby enhancing the overall quality and integrity of the ship construction process.

      • Reverse Engineering

        Our 3D scanners are used in reverse engineering to create accurate digital models of existing parts and assemblies, enabling the reproduction of obsolete components and the analysis of competitor designs for innovation and improvement.

      • Vibration Analysis

        Our 3D scanners play a crucial role in vibration analysis by providing detailed geometric data of components. This allows engineers to simulate and analyze vibration behavior, identify potential issues early, and optimize designs for enhanced performance and durability.

      • Shape and Dimension Control

        Our 3D scanners are utilized for shape and dimension control to ensure that components conform to precise design specifications, facilitating accurate measurements and early detection of manufacturing deviations.

      • Trak ProW rendering

        TMScan Pro

        TMScan Pro maintains core features such as marker-free scanning and guaranteed high accuracy of the TMScan Pro series, while introducing advanced upgrades for improved performance.

        • Scan Accuracy

          /

        • Volumetric Accuracy

          15.6 m³: 0.046 mm; 45 m³: 0.063 mm; 76 m³: 0.088 mm; 128 m³: 0.127 mm

        • Scan Speed

          /

        • Point Distance

          /

        • Maximum FOV

          /

        • Material Adaptability

          Normal/Dark/Reflective

        • Type of light source

          Laser

        • Align Mode

          Feature Alignment / Marker Alignment
      • Trak Nova rendering

        TMScan Nova

        TMScan Nova integrates a portable tracking scanner, the largest-FOV handheld laser scanner, and video photogrammetry (VPG) module into one advanced wireless tracking system.

        • Scan Accuracy

          /

        • Volumetric Accuracy

          0.062 mm (12 m³)

        • Scan Speed

          /

        • Point Distance

          /

        • Maximum FOV

          2600 x 2200 mm

        • Material Adaptability

          Normal/Dark/Reflective

        • Type of light source

          Laser

        • Align Mode

          Feature Alignment / Marker Alignment
      • UE Nova rendering

        TMScan Nova

        TMScan Nova, a wide-range wireless laser handheld 3D scanner, sets the new standard in 3D scanning with its unmatched field of view

        • Scan Accuracy

          /

        • Volumetric Accuracy

          0.072 + 0.012 mm/m

        • Scan Speed

          /

        • Point Distance

          /

        • Maximum FOV

          2600 x 2200 mm

        • Material Adaptability

          Normal/Dark/Reflective

        • Type of light source

          Laser

        • Align Mode

          Feature Alignment / Marker Alignment
      • TMScan Pro-2

        TMScan Pro

        TMScan Pro is a wireless 3D scanner with ultra-fast speed. Its versatile scan modes and light weight make it ideal for on-site inspections.

        • Scan Accuracy

          Up to 0.02 mm

        • Volumetric Accuracy

          0.02+0.015 mm/m

        • Scan Speed

          3,460,000 points/s

        • Point Distance

          0.01 ~ 10 mm

        • Maximum FOV

          600 x 550 mm

        • Material Adaptability

          Normal/Dark/Reflective

        • Type of light source

          Laser

        • Align Mode

          Marker Alignment

      • trio-1

        TMScan Ui

        Flagship metrology handheld scanner with fast and innovative 98 laser lines for marker-free scanning. Whether you need speed or accuracy on small or large assemblies, the versatile TMScan Ui is geared for all your projects.

        • Scan Accuracy

          Up to 0.02 mm

        • Volumetric Accuracy

          0.02+0.015 mm/m

        • Scan Speed

          3,010,000 points/s

        • Point Distance

          0.01 ~ 3 mm

        • Maximum FOV

          650 x 580 mm

        • Material Adaptability

          Normal/Dark/Reflective

        • Type of light source

          Laser

        • Align Mode

          Feature Alignment / Marker Alignment
      • ue pro-1

        TMScan Pro

        Professional metrology handheld scanner with 26+7+1 blue laser lines and built-in photogrammetry for scanning different sizes and global precision control of large-scale workpieces.

        • Scan Accuracy

          Up to 0.02 mm

        • Volumetric Accuracy

          0.02+0.015 mm/m

        • Scan Speed

          1,850,000 points/s

        • Point Distance

          0.01 ~ 10 mm

        • Maximum FOV

          600 x 550 mm

        • Material Adaptability

          Normal/Dark/Reflective

        • Type of light source

          Laser

        • Align Mode

          Marker Alignment
      • trak pro2-1

        TMScan Pro2

        A metrology-grade optical tracking 3D scanning system for medium and large objects without markers. It is suitable for various static and dynamic applications.

        • Scan Accuracy

          Up to 0.023 mm

        • Volumetric Accuracy

          0.062 mm

        • Scan Speed

          3,070,000 points/s

        • Point Distance

          0.05 ~ 10 mm

        • Maximum FOV

          650 x 580 mm

        • Material Adaptability

          Normal/Dark/Reflective

        • Type of light source

          Laser

        • Align Mode

          Feature Alignment / Marker Alignment
      • combo

        TMScan Combo Series

        Entry-level metrology handheld scanner with a combination of blue laser and infrared light for diverse industrial 3D scanning scenarios.

        • Scan Accuracy

          Up to 0.02 mm

        • Volumetric Accuracy

          0.02 + 0.033 mm/m

        • Scan Speed

          3,600,000 points/s (TMScan Combo+)

          1,860,000 points/s (TMScan Combo)

        • Point Distance

          0.05 ~ 10 mm

        • Maximum FOV

          520 x 510 mm

        • Material Adaptability

          Normal/Dark/Reflective

        • Type of light source

          Laser + Infrared VCSEL

        • Align Mode

          Feature Alignment / Marker Alignment
      • 官网产品卡片图

        TMScan Optimus

        The TMScan Optimus delivers a fully wireless, standalone 3D scanning experience, powered by its built-in screen and NVIDIA processor.

        • Scan Accuracy

          /

        • Volumetric Accuracy

          0.04 + 0.06mm/m

        • Scan Speed

          2,700,000 points/s (IR Rapid); 1,900,000 points/s (IR Adaptive); 4,500,000 points/s (Laser HD)

        • Point Distance

          0.5 ~ 10mm(IR Rapid/IR Adaptive); 0.05 ~ 3.0mm(Laser HD)

        • Maximum FOV

          983 x 979mm(IR Rapid); 779 x 835mm(IR Adaptive); 382 x 450mm(Laser HD)

        • Material Adaptability

          Normal/Dark/Reflective/Outdoor

        • Type of light source

          IR VCSEL/IR Laser/Blue Laser

        • Align Mode

          Markers/Global Markers/Feature/Texture/Hybrid(IR Rapid/Laser HD); Markers/Global Markers(IR Adaptive)
