TMScan Combo X

Multifunctional Metrology Laser 3D Scanner

  • Blue laser & Infrared light
  • Accuracy of 0.02mm
  • Powerful and Ergonomic
  • Reddot Winner 2024

Compact and Powerful Metrology

Packs dual light sources in an ultra-compact shell, measuring just 193 x 63 x 53 mm. It's equipped with both blue laser and infrared VCSEL technology and weighs only 620g.
Metrology-grade Accuracy

Metrology-Grade Accuracy

Accuracy 0.02mm, delivers consistent scanning results with high precision.
Versatile Dual Light Scanning

Versatile Dual Light Scanning

An innovative combination of blue laser and infrared light sources meets the needs of diverse industrial 3D scanning scenarios.

Multiple Scanning Modes

Multiple Scanning Modes

Up to 25 cross laser lines to scan large objects quickly, 7 parallel laser lines to scan fine details, and a single laser line for deep hole and pocket area scanning.

Lightweight and Compact

Lightweight and Compact

The lightweight and ergonomic design of the Combo Series allows for use in a variety of narrow and complex environments.

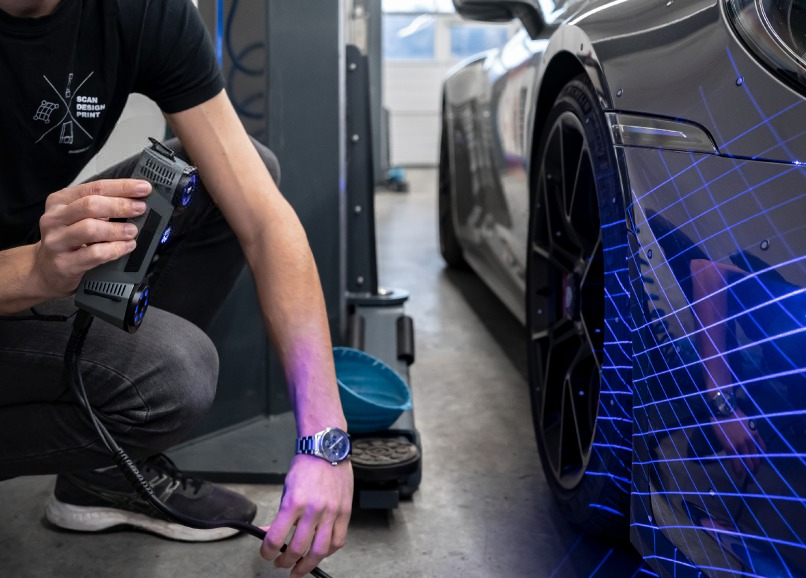

TMScan Combo Blue Laser and Infrared Light

Blue Laser & Infrared Light

An innovative combination of blue laser and infrared light ensures accurate results in various scenarios, improving both efficiency and quality.

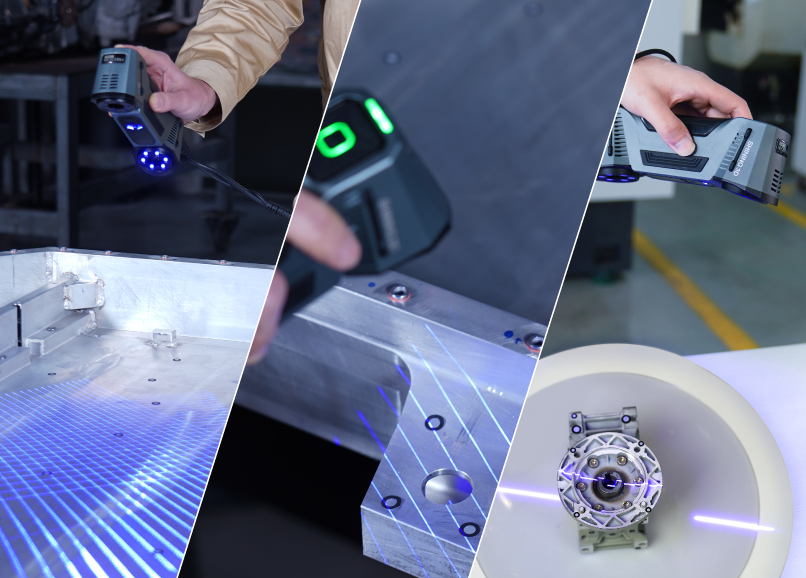

    TMScan Combo Machenical Parts Scanning

    Four 3D Scanning Modes to Cover All Types of Workpieces

    • Multiple-line mode with 26 or 50 laser lines for overall scans
    • Fine scanning mode with 7 parallel laser lines to acquire intricate details
    • Deep hole scanning mode with 1 single laser line
    • Infrared light mode for quick scans without markers

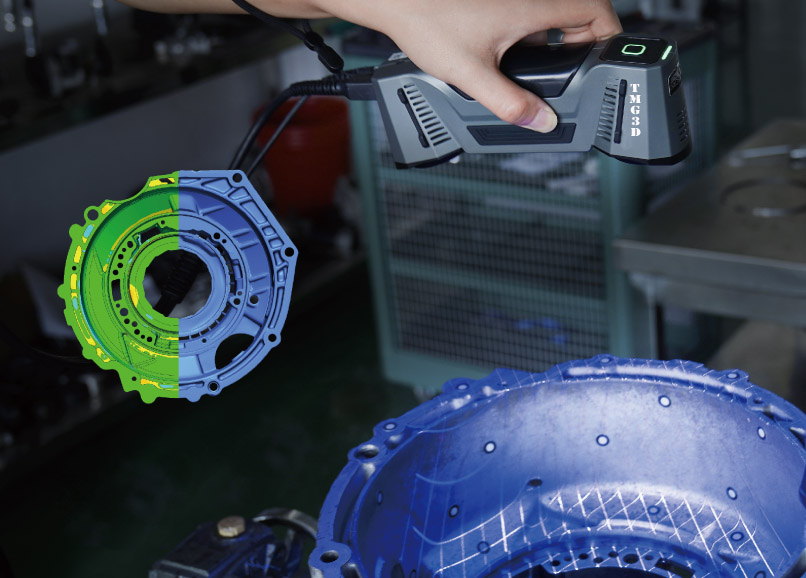

      TMScan Combo A Wise Choice for Metrology

      A Wise Choice for Metrology

      The TMScan Combo X' laser scanning modes can achieve industrial-grade accuracy of 0.02 mm*, making it ideal for metrology applications.

      *Based on VDI/VDE 2634, sphere-spacing error is assessed with traceable length artifacts and markers by measuring these at different locations and orientations within the working volume, in the accuracy lab certified with ISO/IEC 17025:2017 under environmental conditions: temperature 20 ± 0.5°C; humidity 40 ~ 60% RH.

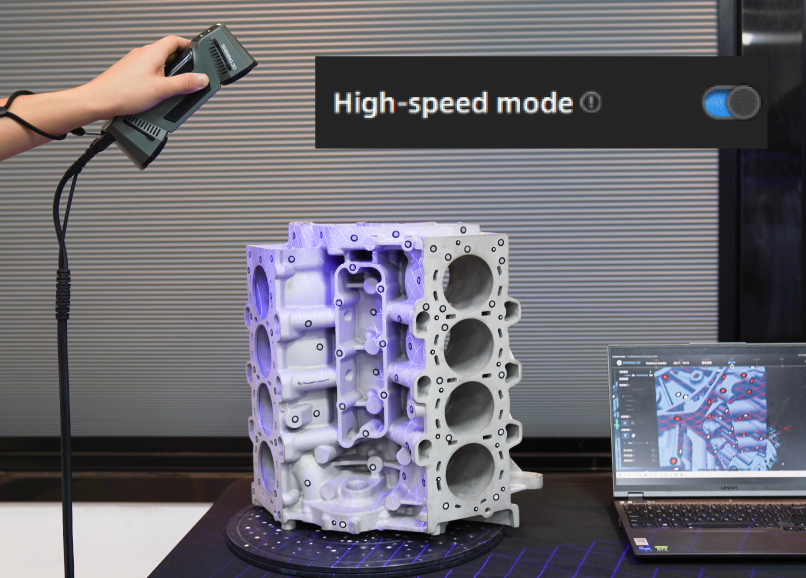

        TMScan Combo high speed mode

        Fast Scan Speed

        It's multiple line mode projects up to 50 laser lines (TMScan Combo + version) and scan at speeds of up to 3,600,000 points/sec

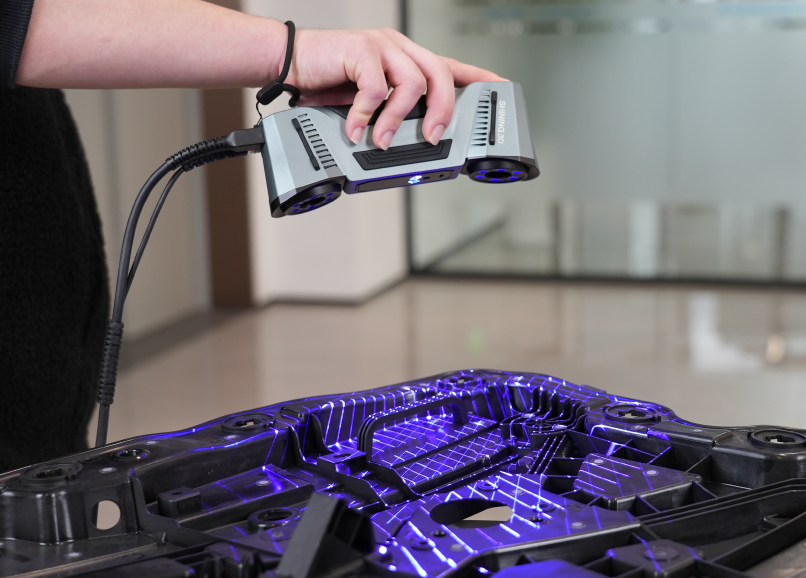

          TMScan combo Powerful and Ergonomic

          Powerful and Ergonomic

          The TMScan Combo X boasts an ergonomic, compact, and lightweight design that makes 3D scanning convenient and easy.

          The optimized camera angle makes it more suitable for working in narrow and complex environments, allowing for fast data capture in seams.

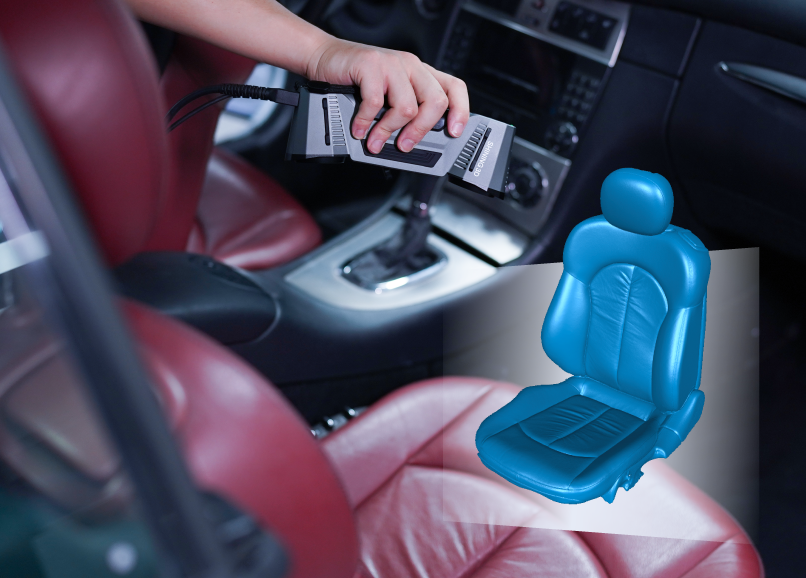

            TMScan Combo Infrared Light Scanning

            Infrared Light Scanning

            For feature-rich workpieces, the infrared light scanning mode is ideal. It captures parts quickly and efficiently without the need for markers.
              Special Pricing for Reverse Engineering Bundle

              Special Pricing for Reverse Engineering Bundle

              Unlock the full potential of your engineering and design capabilities with our comprehensive reverse engineering bundle. Featuring the cutting-edge TMSoft-WX Combo Series 3D Scanner and EXModel, this powerful combination provides:

              • Precise 3D scanning and data capture
              • Efficient creation of detailed digital CAD models
              • Tailored solutions for industries requiring high-fidelity object reproduction
              Elevate your design and engineering workflows with our professional-grade reverse engineering bundle, designed to deliver unparalleled accuracy, speed, and reliability.





              Transform Your Workflow with Our Scanners

              Discover how integrating our scanners into your workflow can enhance efficiency and help you achieve remarkable results.

                • Automotive

                  With high scanning speed, fluency, and accuracy, the TMScan Combo X can significantly enhance scanning efficiency without losing precision. It is an ideal choice for scanning vehicle bodies for surface deviation analysis and detecting the positional accuracy of sheet metal holes. Additionally, it can scan without markers using IR mode, which brings more scanning possibilities to the engine compartment and car chassis for redesign.

                • Energy, Heavy Industry & Public Utilities

                  The metrology cameras, blue laser projector, and good portability allow the scanner to accurately capture data both indoors and outdoors. It excels at obtaining precise data for large objects such as water turbines and petroleum drill bits, facilitating deformation and damage detection.

                • Engineering Machinery & Other Transportation

                  Equipped with three laser line modes, good portability, and metrology-grade accuracy, the TMScan Combo X allows you to scan efficiently and accurately both indoors and outdoors. It is ideal for scanning hull accessories, and tracks for rail transit, as well as for inspection and reverse engineering.



                  TMScan Software

                  No subscriptions, no hidden fees.

                  Tianjin Machinery Group TMScan Combo X 3D Scanners come with access to our powerful and continuously updated software. Scan as much as you want, all year long, with no hidden fees or extra costs.

                  Step-by-step Guidance

                  Step-by-Step Guidance

                  The TMScan software will guide you through the 3D scanning process, from calibration to 3D scanning and data editing.

                  Multiple Scan Modes

                  Multiple Scan Modes

                  With TMScan software, the Combo supports four kinds of scanning modes, providing users with the flexibility to choose according to their needs.

                  AI Data Cleanup

                  AI Data Cleanup

                  TMScan software is equipped with intelligent algorithms that can process and optimize scanning data more efficiently, delivering more ideal results.

                  Adjustable Resolution

                  Adjustable Resolution

                  TMScan software can select corresponding solutions based on different scanned samples, making it more flexible in meeting various scanning requirements.

                  Compatible Software

                  geomagic design x
                  Geomagic Design X
                  Polyworks
                  Polyworks
                  EXModel
                  EXModel

                  Technical Data

                  • High-speed Scanning 50 or 26 laser lines
                  • Detailed Scan 7 laser lines
                  • Deep Pockets 1 single line
                  • No Markers Scan Infrared mode
                  • Accuracy 0.02 mm
                  • Max. FOV 520 × 510 mm / 600 × 600 mm
                  • Volumetric Accuracy 0.02 + 0.033 mm/m
                  • Point Distance 0.05 ~ 10 mm / 0.1 ~ 3 mm
                  • Scan Speed Up to 3,600,000 points/s
                  • Weight 620g
                  • Certifications CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TISAX
                  • Accuracy Certification VDl/VDE 2634 Part 3 (ISO 17025 certificated lab)

                  Our Expertise, Your Advantage

                  20

                  years of experience

                  400

                  patents

                  100

                  3D scanners sold Worldwide

                  • Vision Miner TMScan combo testimonial

                    The TMScan Combo's ability to handle reflective surfaces and its flexibility in adjusting to various scanning angles makes it an exciting choice for serious and accurate 3D scanning projects.



                    Martin Page,

                    Autonomous Vehicle Engineer, Vision Miner



                  Frequently Asked Questions

                  • Is it possible to scan without applying markers on object?

                    Yes. TMScan Combo is a dual light source scanner, and the infrared light source can be used to quickly scan feature-rich workpieces without the need for markers on the surface.

                  • Is it possible to scan color texture of objects?

                    No. TMScan Combo doesn't have a color camera to capture the texture information of object.

                  • How can I scan a deep hole?

                    TMScan Combo offers four scanning modes to choose from. Use one single blue laser line to obtain deep-hole data.

                  • When do I need to calibrate the 3D scanner?

                    1. When using for the first time or after 1-2 weeks of inactivity.

                    2. If the scanner has been severely shaken or vibrated, like during transport.

                    3. If accuracy is significantly reduced, causing frequent alignment errors or unrecognized markers.

                    4. If scanning data is incomplete or the quality has seriously deteriorated.

                  • Can TMScan Combo scan black or reflective object?

                    Yes, TMScan Combo is equipped with blue laser source, which has a very strong adaptability of black and reflective surface.

                  • Can I use TMScan Combo to scan human body?

                    Yes. Infrared light source scanning can be used to scan human body.
